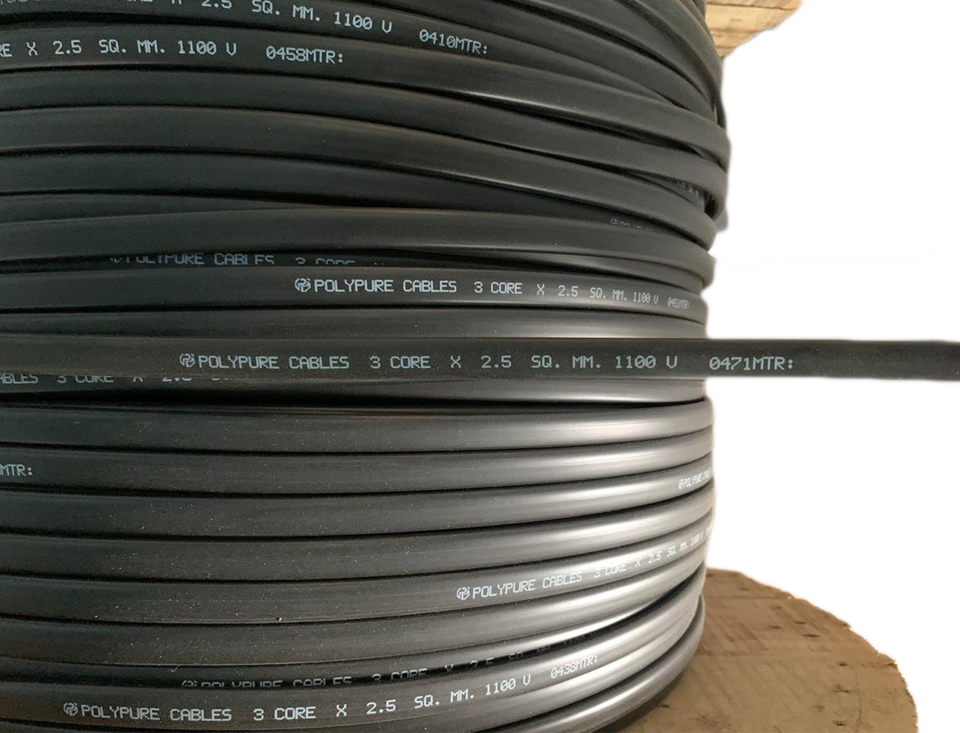

Polypure® 3-core Flat Cable Hot
Polypure Cables is the market leader in Electrical wires. With superior quality and customer validated trouble-free performance validation, Polyppure's Industrial Cables is the number one choice in the market since last 30 years. “PVC Insulated & sheathed submersible cable with annealed bunched copper. Specially designed cables for submersible pump motors are meant to withstand abrasion, prevent ingress of water along the inside of the cables and be resistant to acidic fluids and other chemicals. These cables are available in PVC which imparts high degree of flexibility and water resistance.
Features
  • Resistant to Oil and Soil
  • As per IS dimesnion
  • Perfect sheating for underwater application
  • High modulus of elasticity
Applications
  • Borewell Submersible Pumps
Specifications
Size: 0.5, 1, 2.5, 4, 6, 10, 16 (mm)2
Generally available with 70℃ insulation and PVC sheathing
Technical Specification
Nom. Cross Section Area of Conductor (mm)2 Number of Nominal Dia. of Strands Nom. Insulation Thickness (mm) Nom. Sheath Thickness (mm) Max. Resistance Per Km @ 20℃ (Ω/km) Overall Dimension (Max.) (W X H) (mm X mm) Current Carrying Capacity @ 40℃ (Amps)
1.5 22/0.3 0.6 0.9 12.1 12.0 X 5.6 18
2.5 36/0.3 0.7 1.0 7.41 13.0 X 6.2 24
4 56/0.3 0.8 1.0 4.95 15.3 X 7.1 28
6 84/0.3 0.8 1.1 3.30 19.2 X 8.4 36
* Conductor Diameter and Insulation Thickness also available on customer requirements.
* Due to continous improvement, specifications may change without prior notification.
